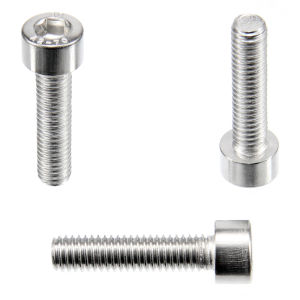

1x Zylinderschraube M2,5 x 20 (DIN 912 - A2)

DIN 912 / ISO 4762
Material: A2 (V2A Edelstahl)

abStückpreis / Stück Grundpreis
10 0,0509 € * 5,09 € pro 100 Stück
50 0,0482 € * 4,82 € pro 100 Stück
100 0,0456 € * 4,56 € pro 100 Stück
0,05 €
pro 1 Stück
5,36 € pro 100
inkl. 19% USt. , zzgl. Versand
Sofort verfügbar
Lieferzeit: 1-3 Werktage (DE - Ausland abweichend)
Stück
Beschreibung
1x Zylinderschraube M2,5 x 20 (DIN 912 - A2)
DIN 912 / ISO 4762
A2 (V2A)


Technische Daten
Gewinde (d) = M2,5
Gewindelänge (b) = 17 mm
Länge (l) = 20 mm

Kopfdurchmesser (dk max.) = 4,5 mm
Kopfhöhe (k max.) = 2,5 mm
Schlüsselweite (s) = 2,0 mm
